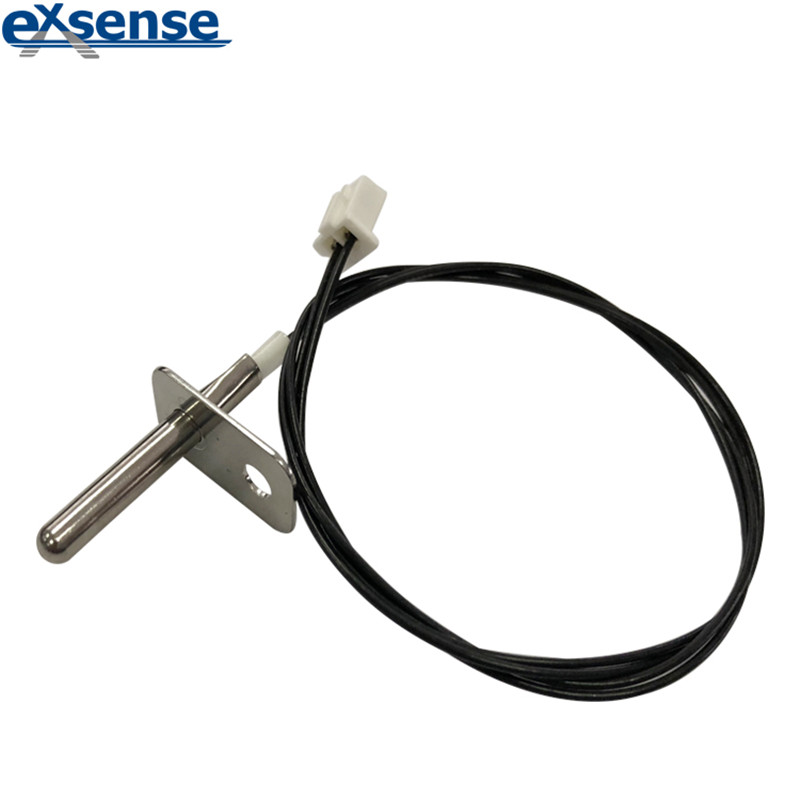

100k 1% 3950 High Precision NTC Thermistor For Deep Fryer

1. Thermal reaction time: Max. 3 seconds in the water bath

2. Dissipation coefficient: about 2.6mw /℃ in standing air

3. Pressure test: 2mA 1 second, no flashover, no breakdown and other abnormal phenomena in the steel ball

4. Insulation test: 100 m Ω, steel ball in the 100 m or more Ω

5. Rated power: 10mW

6. Operating temperature:-40~300℃

    EXSENSE Sensor Technology Co.,Ltd is a professional research and development, production NTC temperature sensor, encapsulation thermistor NTC thermistor, glass manufacturers, smart home series frange type pt100/1000 thermistor sensor is high sensitivity, high reliable NTC thermistor chip encapsulated with insulation, thermal conductivity, waterproof material into required shape, easy to install and remote measurement and control temperature.High precision and high range, which is used for high temperature and waterproof temperature measurement and detection.

    Product Model


    B-value (25/50 or 25/85)

    3380K, 3435K, 3450K, 3470K, 3950K, 4050K, 4100K, 4250K


    0.1C, 0.2C, 1%, 2%, 3%, 5%

    Temperature Range


    Housing Material

    Metal, plastic, epoxy, special
    Housing Size

    Housing SizeUL1332#26AWG

    Cable length

    According to your requirements

    Dissipation factor

    Ta=25±0.5℃ about2.6mW/℃

    If all the parameters are not suitable for you. We can customize

    Please submit your basic information, we will contact you as soon as possible!
