FEATURES
The latest developed double electrode series single layer capacitor of Exsense Electronics is mainly used in RF/microwave and millimeter-wave lines, with a unique structure, good performance and consistency of features. Custom requirements of different sizes and parameters are available.
1. Peculiar structure.
2. Consistent performance.
3. Customized sizes and parameters available.
APPLICATION
1. This series make it ideal for RF/microwave and millimeter wave application.

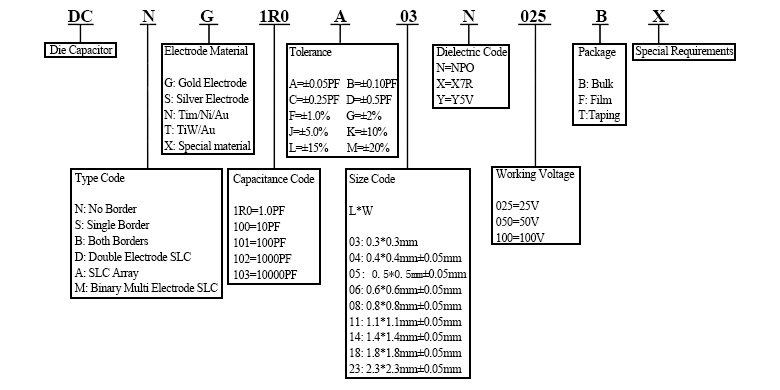

Part Number Identification
Electronic Parameter Specification
| Size(mm) CAP.(PF) |
G03±0.05 | G04±0.05 | G05±0.05 | G06±0.05 | G08±0.15 | G11±0.15 | G14±0.15 | G18±0.25 | G23±0.25 |
| 0.3*0.3 | 0.4*0.4 | 0.5*0.5 | 0.6*0.6 | 0.8*0.8 | 1.1*1.1 | 1.4*1.4 | 1.8*1.8 | 2.3*2.3 | |
| 0.1(0R1) | √ |
√ | |||||||
| 0.2(0R2) | √ | √ | √ | √ | |||||
| 0.3(0R3) | √ | √ | √ | √ | |||||
| 0.5(0R5) | √ | √ | √ | √ | √ | ||||
| 1.0(1R0) | √ | √ | √ | √ | √ | √ | √ | ||
| 1.2(1R2) | √ | √ | √ | √ | √ | √ | √ | ||
| 2.7(2R7) | √ | √ | √ | √ | √ | √ | √ | ||
| 3.0(3R0) | √ | √ | √ | √ | √ | √ | √ | ||
| 3.6(3R6) | √ | √ | √ | √ | √ | √ | √ | ||
| 5.1(5R1) | √ | √ | √ | √ | √ | √ | √ | ||
| 10(100) | √ | √ | √ | √ | √ | √ | √ | ||
| 15(150) | √ | √ | √ | √ | √ | √ | √ | ||
| 22(220) | √ | √ | √ | √ | √ | √ | √ | ||
| 27(270) | √ | √ | √ | √ | √ | √ | √ | ||
| 33(330) | √ | √ | √ | √ | √ | √ | √ | ||
| 47(470) | √ | √ | √ | √ | √ | √ | √ | ||
| 56(560) | √ | √ | √ | √ | √ | √ | √ | ||
| 68(680) | √ | √ | √ | √ | √ | √ | √ | ||
| 82(820) | √ | √ | √ | √ | √ | √ | √ | ||
| 100(101) | √ | √ | √ | √ | √ | √ | √ | ||
| 150(151) | √ | √ | |||||||
| 220(221) | √ | √ | √ | √ | √ | √ | √ | ||
| 270(271) | √ | √ | |||||||
| 330(331) | √ | √ | √ | √ | √ | √ | √ | ||
| 390(391) | √ | √ | |||||||
| 470(471) | √ | √ | √ | √ | √ | ||||
| 560(561) | √ | √ | √ | √ | √ | ||||
| 680(681) | √ | √ | √ | √ | √ | ||||
| 750(751) | √ | √ | √ | √ | √ | ||||
| 820(821) | √ | √ | √ | √ | √ | ||||
| 1000(102) | √ | √ | |||||||
| 1200(122) | √ | √ | √ | ||||||
| 1500(152) | √ | √ | √ | ||||||
| 1800(182 | √ | √ | |||||||
| 2200(222) | √ | √ | |||||||
| 2700(272) | √ | √ | |||||||
| 3300(332) | √ | √ | √ | ||||||
| 3900(392) | √ | ||||||||
| 4700(472) | √ | ||||||||
| 5600(562) | √ | ||||||||
| 6200(622) | √ | √ | |||||||
| 6800(682) | √ | √ | |||||||
| 7500(752) | √ | ||||||||
| 8200(822) | √ | ||||||||
| 10000(103) | √ |
|
Noted：0.3*0.3±0.05 (Lenght0.3mm* Width0.3mm±0.05 )
Special specifications can be customized Designed
|
