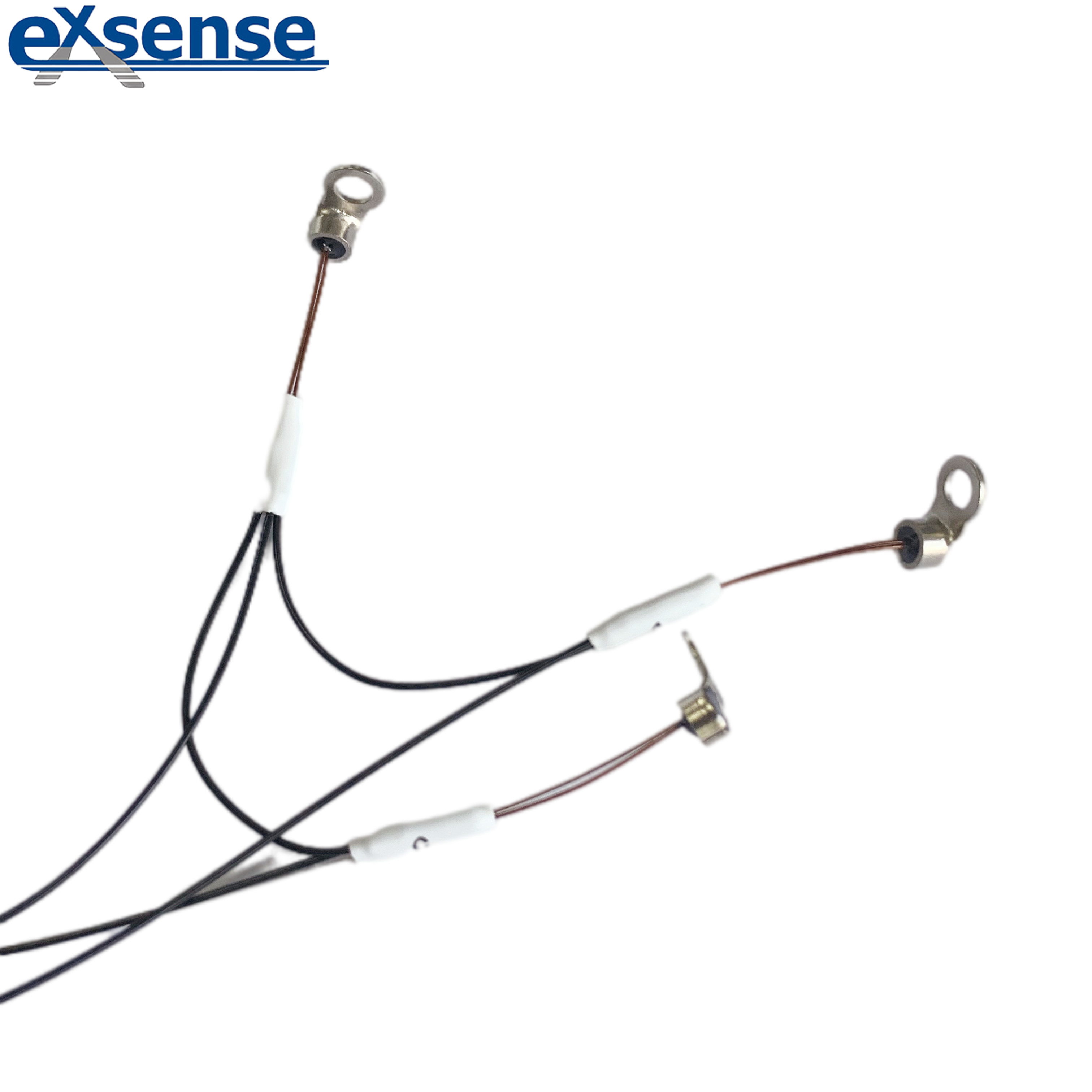

Smart Home NTC Temperature Sensor

Circuit Breaker NTC Sensor 10K 3950 NTC Temperature Sensor


    EXSENSE Sensor Technology Co.,Ltd is a professional research and development, production NTC temperature sensor, encapsulation thermistor NTC thermistor, glass manufacturers, smart home series frange type pt100/1000 thermistor sensor is high sensitivity, high reliable NTC thermistor chip encapsulated with insulation, thermal conductivity, waterproof material into required shape, easy to install and remote measurement and control temperature.High precision and high range, which is used for high temperature and waterproof temperature measurement and detection.








    Product Model
    TS103J25C3950GAIM-NL265A-NL235A-NL205A
    Resistance Specification
     R25=10KΩ±5%,B(25/50)=3950K±1%

    Response Time ≤10S
    Temperature Range --30℃~125℃
    PIN ZH-T(1.5)
     Wire material UL10362#28AWG
    Cable length According to your requirements
    Dissipation factor Ta=25±0.5℃ about2.6mW/℃
    If all the parameters are not suitable for you. We can customize
